200w Transformer
$241.50

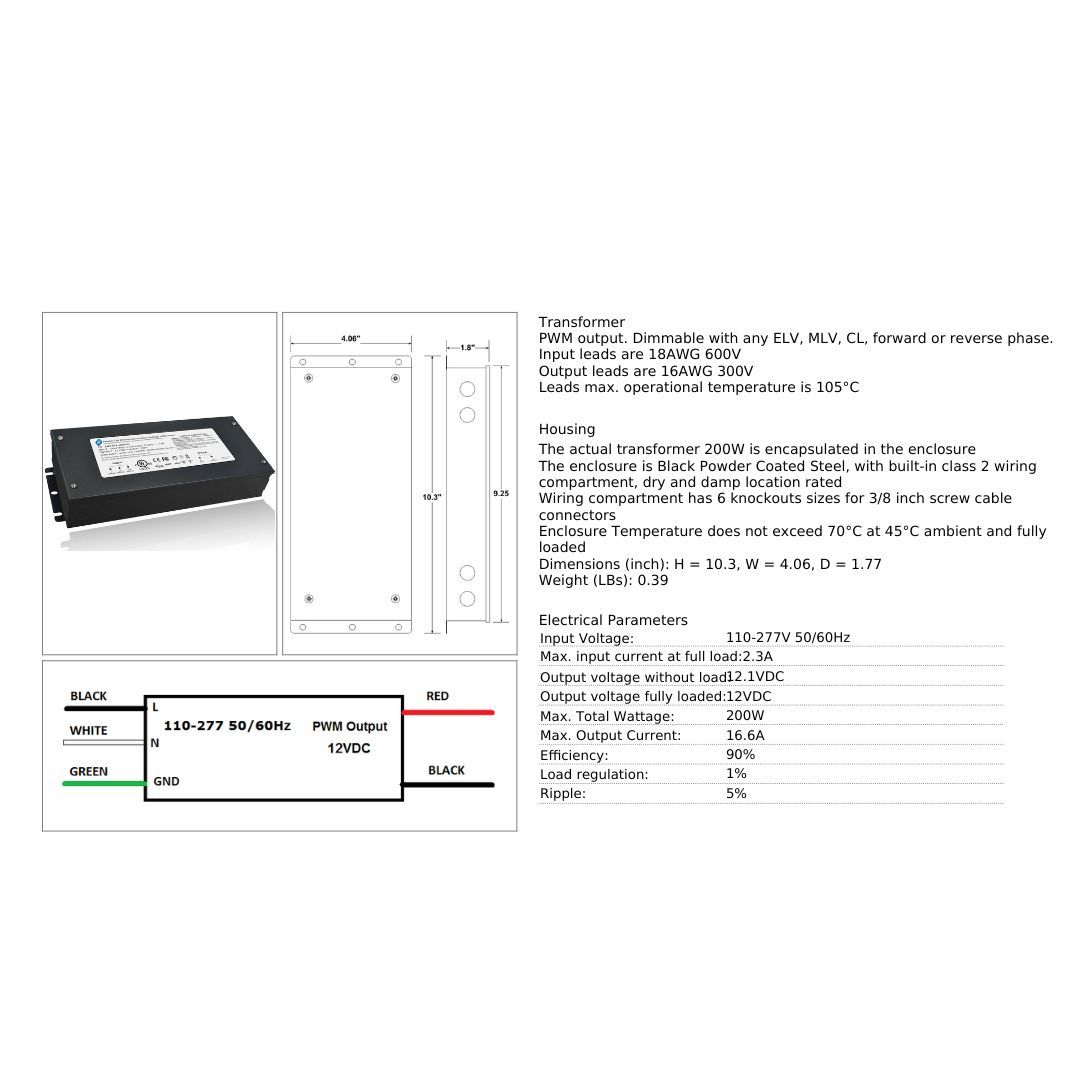

Built for larger SLABlite LED installations (61–80 panels), this 200W Transformer provides reliable power and advanced dimming performance. Engineered for high efficiency and consistent output, it ensures uniform illumination across all connected LED panels.
Features
- PWM output, dimmable with ELV, MLV, CL, forward, or reverse phase controls
- Input voltage: 110–277V AC, 50/60Hz
- Output voltage: 12VDC (regulated)
- Maximum output power: 200W
- Maximum output current: 16.6A
- Efficiency: 90%
Construction
- Black powder-coated steel enclosure with built-in Class 2 wiring compartment
- Dry and damp location rated
- Six ⅜″ knockout openings for quick and secure connections
- Encapsulated design for thermal stability and longevity
- Operating temperature up to 70°C (at 45°C ambient, fully loaded)
- Dimensions: 10.3″ L × 4.06″ W × 1.77″ H
- Weight: 0.39 lbs
Perfect for powering larger lighting zones, the 200W Transformer combines strength, stability, and energy efficiency — ideal for professional SLABlite installations demanding consistent, high-quality lighting performance.
For 16 years, we have been providing guidance to people on how to install this product. Prior to embarking on a backlighting project, we advise speaking with one of our experts for free. If you have not previously installed SLABLite, we suggest contacting us for assistance.
