60w Transformer
$105.00

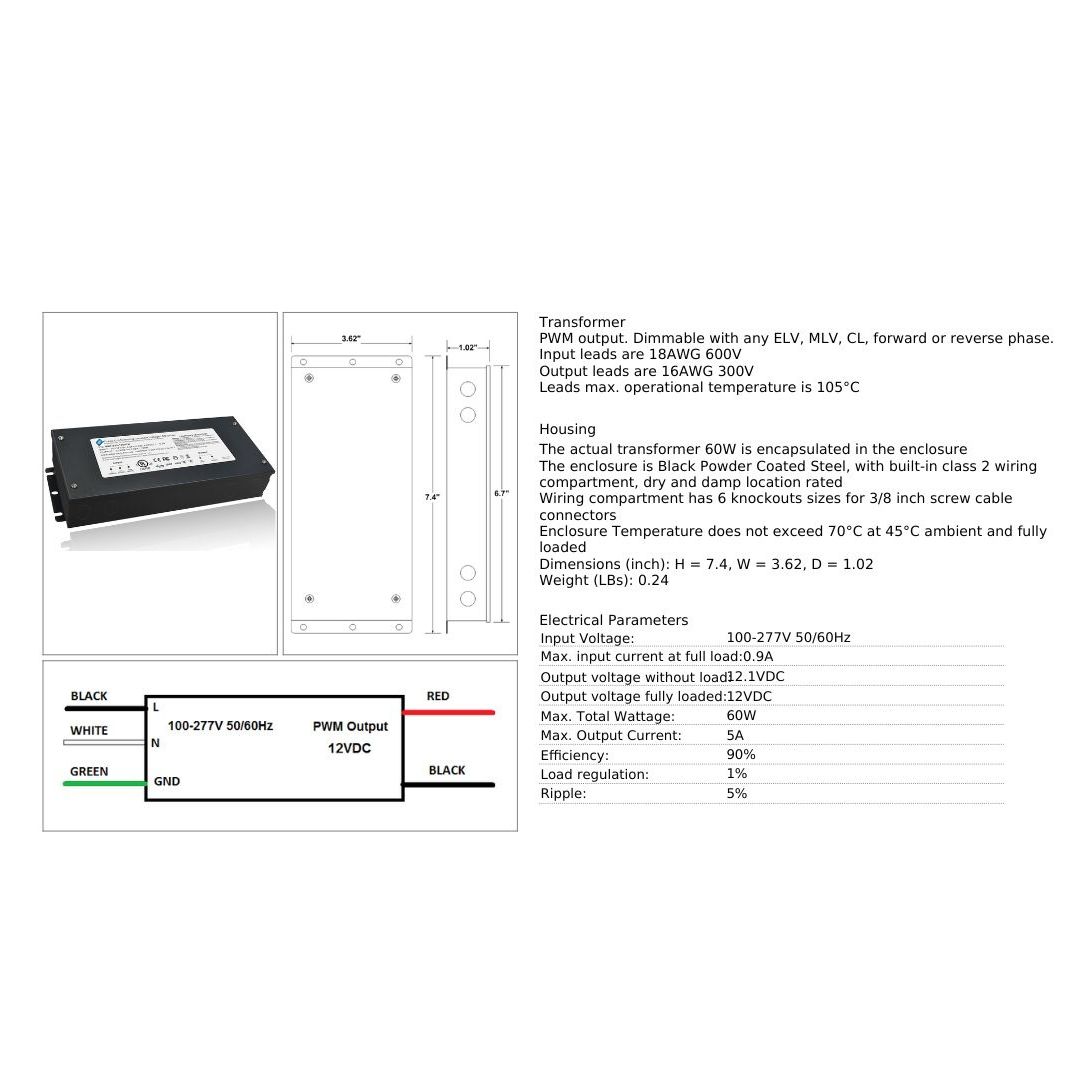

Power your SLABlite LED Panels safely and efficiently with our 60W Transformer — the essential component for systems using 1–24 panels. Designed for reliability and long-term performance, this unit delivers smooth 12VDC output and consistent illumination for your backlit surfaces.
Features
- PWM output, fully dimmable with ELV, MLV, CL, forward, or reverse phase controls
- Input voltage: 100–277V AC, 50/60Hz
- Output voltage: 12VDC (regulated)
- Max output power: 60W
- Max output current: 5A
- Efficiency: 90%
Construction
- Black powder-coated steel enclosure with built-in Class 2 wiring compartment
- Dry and damp location rated
- Six ⅜″ knockout openings for easy installation
- Encapsulated design for durability and heat protection (operates up to 70°C)
- Dimensions: 7.4″ L × 3.62″ W × 1.02″ H
- Weight: 0.24 lbs
Ideal for small to mid-sized lighting zones, this transformer ensures optimal performance and dimming control for SLABlite LED systems.
For 16 years, we have been providing guidance to people on how to install this product. Prior to embarking on a backlighting project, we advise speaking with one of our experts for free. If you have not previously installed SLABLite, we suggest contacting us for assistance.
